HAC High-Efficiency Hydrocyclone
Product Detail
Product Introduction

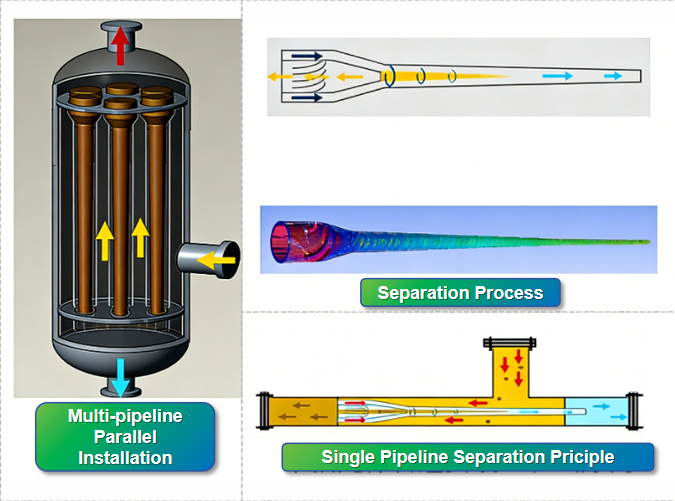

The Cyclonic Oil-Water Separator utilizes specially designed axial vortex technology, optimized through CFD simulations, to create a stable internal vortex flow field. This ensures efficient and rapid separation of oil droplets in wastewater under strong centrifugal force (hundreds to thousands of times gravity). The separator is ideal for situations with oil content in the inlet below 50%, and it can handle small amounts of gas. The water outlet achieves drainage below 500mg/L, while the oil discharge end concentrates the produced liquid, such as achieving 50% oil content from a 10% produced liquid. This method is particularly effective for oil wells with high water content, aimed at increasing production.
Product Parameter
Product Features
· Efficient Primary Oil-Water Separation: Suitable for oil well produced fluids, optimized through CFD simulations for a stable flow field and over 90% oil removal efficiency.
· Advanced Axial and Vortex Flow Technology: Provides stronger centrifugal acceleration, faster separation, and more compact equipment.
· High Separation Efficiency: Low pressure drop and minimal kinetic energy loss, achieving water outlet oil content below 1000mg/L.
· Compact, High-Capacity Design: High processing capacity with low pressure drop, ensuring a water outlet pressure drop below 1 bar.
· Proven Performance: Tested on the Wenchang platform, reducing oil content from 20% to 50mg/L.
· Durable and Corrosion-Resistant: Made with dual-phase stainless steel and wear-resistant, superhydrophilic surface modification technology for enhanced durability and resistance to corrosion, wear, and scaling.
Application Cases
Ideal for oilfield or offshore platform produced fluid treatment, or other applications requiring high-efficiency oil-water separation in confined spaces.
