High-Efficiency Hydraulic Cyclone
Product Detail
Product Introduction
The new generation high-efficiency hydraulic cyclone developed by us boasts high oil removal efficiency, stable performance, and cutting-edge technology that meets international standards. It has been widely used in various fields for treating oily wastewater. The hydraulic cyclone generates a powerful centrifugal acceleration (several hundred to even thousands of times gravity) by inducing vigorous swirling flow. This strong centrifugal force causes rapid collision, coalescence, and separation of oil droplets within the water, achieving swift and efficient removal of oil droplets (or suspended solids) from wastewater.
Product Features
1. Higher Oil Removal Efficiency: Achieves 90-95% removal of oil droplets smaller than 10 microns.
2. CFD-Optimized Performance: Features a hydraulically stable flow pattern and consistent, reliable operation.
3. Compact & Lightweight Design: Occupies a small footprint and has a reduced weight for easier deployment.
4. Modular Zoning Design: Offers strong adaptability to varying inlet conditions and requirements.
5. Skid-Mounted Package: Simplifies installation, operation, and maintenance.

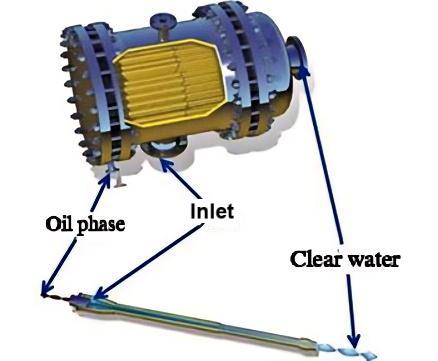

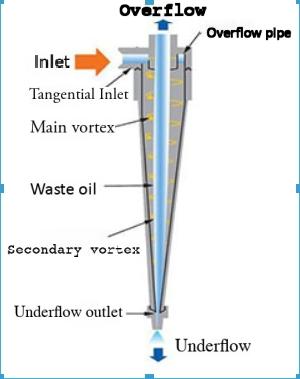

Schematic Diagram

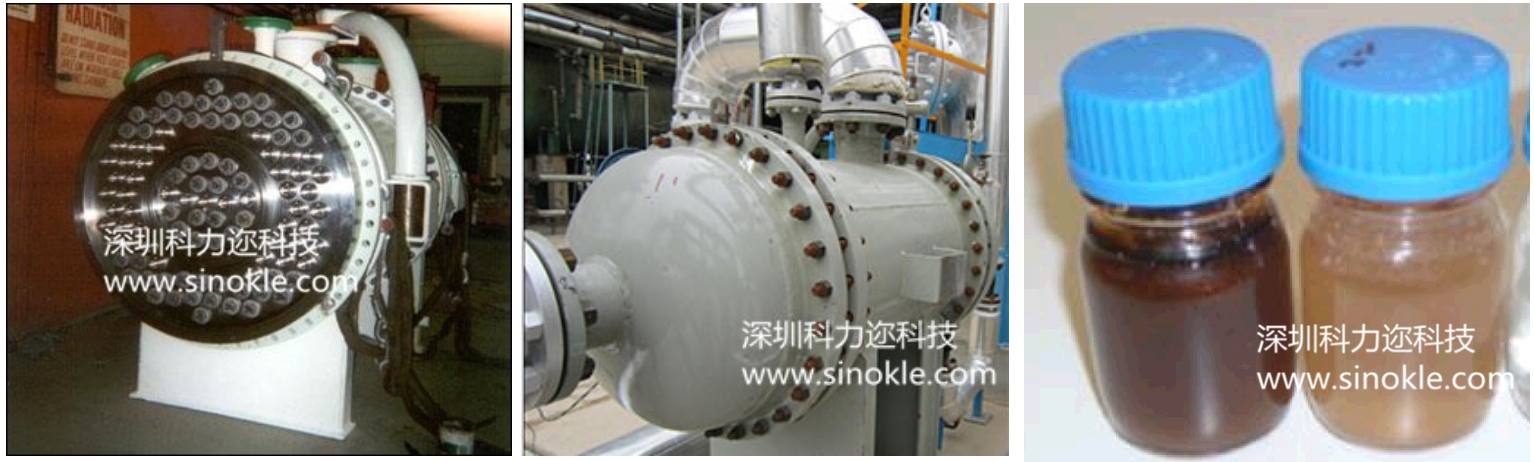

Application Cases
