SIC Membrane Filter

Product Detail

Product Introduction

  Microfiltration and ultrafiltration products made of the best hydrophilic inorganic carbon materials (SIC) have excellent pollution resistance, extremely high filtration flux, superior chemical stability and great mechanical strength.

The membrane core structure adopts honeycomb structure design, so that it has high mechanical strength, high filling density, good sealing and convenient installation and maintenance.

The excellent properties and unique structural design of inorganic carbon membrane make it have a wide application prospect in oil, refining and other sewage treatment fields.

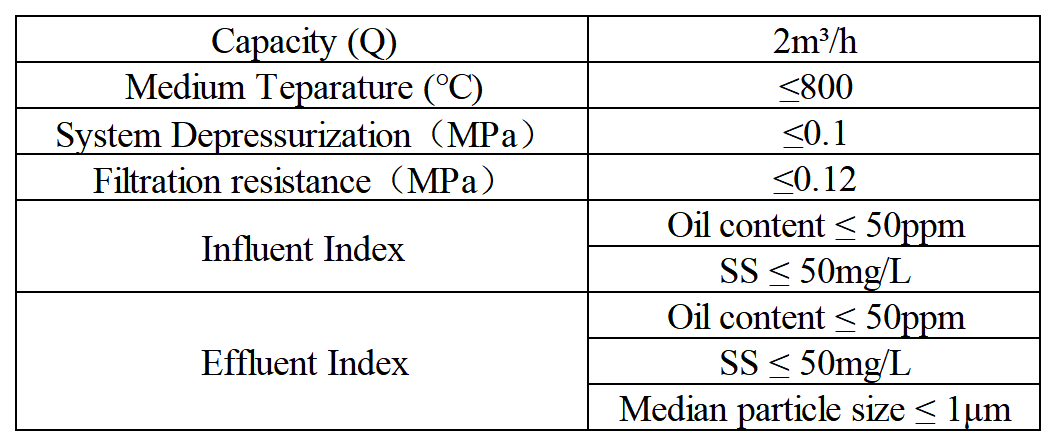

Capacity（Q）	2m3/h
Medium temperature（℃）	≤800
System Depressurization（MPa）	≤0.1
Filtration resistance（MPa）	≤0.12
Water intake index	Oil content≤50ppm
	SS≤50mg/l
Effluent index	Oil content≤5ppm
	SS≤1mg/l
	Median particle size≤1μm

Product Feature

1. High filtration accuracy, absolute accuracy ≤1.0μm (filter aperture 40nm);

2. Good hydrophilicity, contact Angle with water is 0.3, strong oil pollution resistance;

3. High water flux, 3~4 times that of traditional ceramic film;

4. Dynamic continuous membrane regeneration technology, good membrane regeneration, long service life;

5. Good chemical stability, acid and alkali resistance (PH0~14);

6. High structural strength, high pressure resistance;

7. Good temperature resistance, the maximum use temperature of 800℃.




Application Field

Oilfield production reinjection treatment, petrochemical wastewater advanced treatment, metallurgy, textile and other industries wastewater advanced treatment
